递归下降
递归子程序方法的思路：递归子程序法是一种确定的自顶向下语法分析方法，要求文法是LL(1)文法。它的实现思想是对应文法中每个非终结符编写一个递归过程，每个过程的功能是识别由该非终结符推出的串，当某非终结符的产生式有多个候选式时能够按LL(1)形式唯一地确定选择某个候选式进行推导。
具体请看：
预测分析表
预测分析方法的思路：预测分析法是一种表驱动的方法，它由下推栈，预测分析表和控制程序组成。实际上是一种下推自动机的实现模型。预测分析法的关键为预测分析表的构建，即文法中各非终结符first集和follow集的求得。预测分析法从开始符号开始，根据当前句型的最左边的非终结符和分析串中的当前符号，查预测分析表确定下一步推导所要选择的产生式，最终得到输入串的最左推导，完成输入串的语法检查。

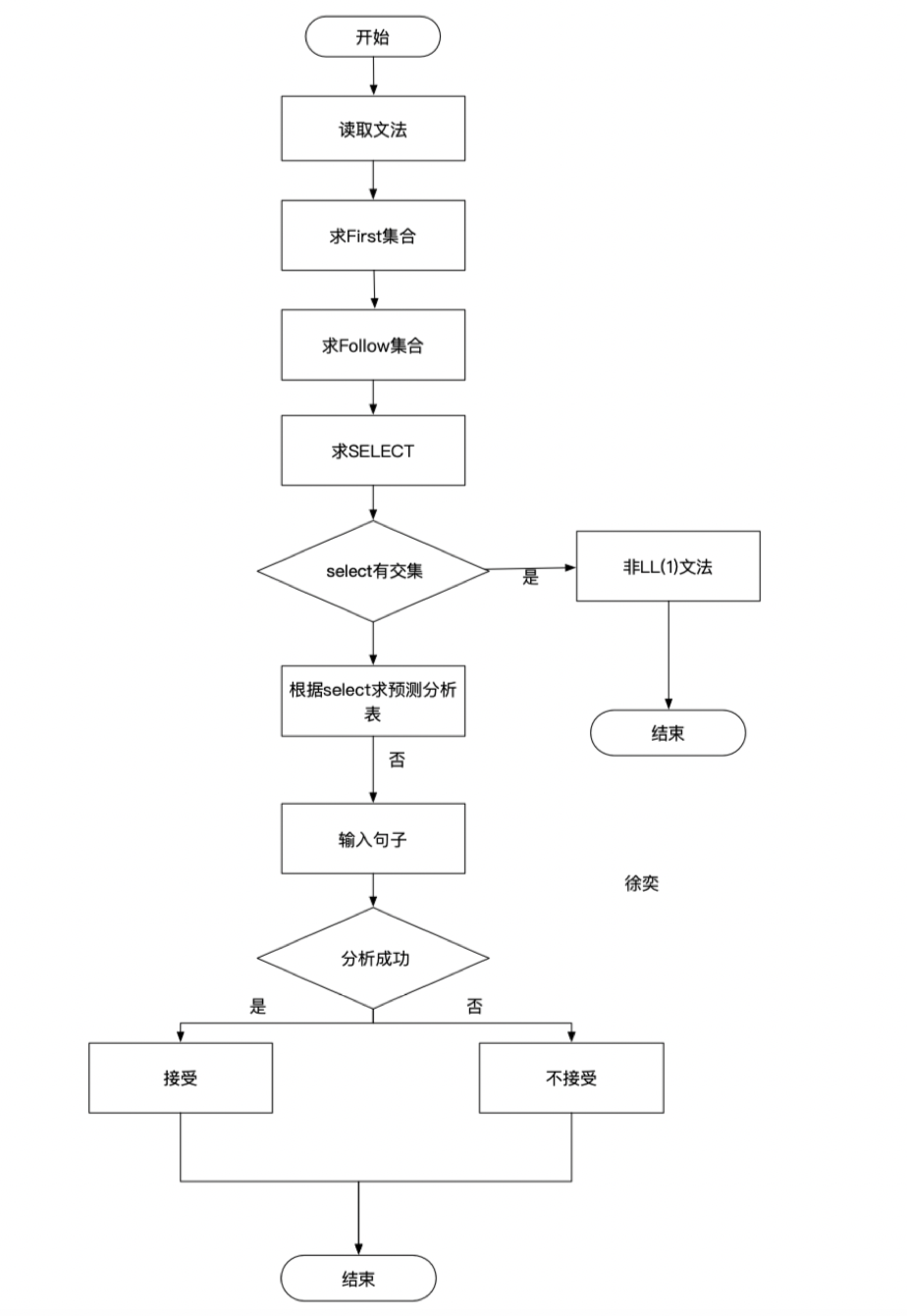

流程图
Python代码
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 |
import time import wx import wx.grid FIRST = dict() # FIRST集 FOLLOW = dict() # FOLLOW集 Grammar = dict() # 文法 LL1Table = dict() # 分析表 VT = set() # 终结符 ProcessList = dict() def get_lan(): num = int(input('请输入文法的个数：')) for i in range(num): temp = input() splitlist = temp[3:].replace("\n", "").split("|") Grammar[temp[0]] = splitlist def get_first(): for k in Grammar: l = Grammar[k] FIRST[k] = list() for s in l: if not (s[0].isupper()): FIRST[k].append(s[0]) for i in range(2): for k in Grammar: l = Grammar[k] for s in l: if (s[0].isupper()): FIRST[k].extend(FIRST[s[0]]) FIRST[k] = list(set(FIRST[k])) # 去重 print("文法为：%s" % Grammar) print("FIRST集为：%s" % FIRST) def get_follow(): condition = lambda t: t != '~' # 过滤器用于过滤空串 for k in Grammar: # 新建list FOLLOW[k] = list() if k == list(Grammar.keys())[0]: FOLLOW[k].append('#') for i in range(2): for k in Grammar: l = Grammar[k] for s in l: if s[len(s) - 1].isupper(): FOLLOW[s[len(s) - 1]].extend(FOLLOW[k]) # 若A→αB是一个产生式，则把FOLLOW(A)加至FOLLOW(B)中 FOLLOW[s[len(s) - 1]] = list(filter(condition, FOLLOW[s[len(s) - 1]])) # 去除空串 for index in range(len(s) - 1): if s[index].isupper(): if s[index + 1].isupper(): # 若A→αBβ是一个产生式，则把FIRST(β)\{ε}加至FOLLOW(B)中； FOLLOW[s[index]].extend(FIRST[s[index + 1]]) FOLLOW[s[index]] = list(filter(condition, FOLLOW[s[index]])) # 去除空串 if not (s[index + 1].isupper()) and (s[index + 1] != '~'): FOLLOW[s[index]].append(s[index + 1]) emptyflag = 1 for i in range(index + 1, len(s)): if not (s[i].isupper()) or (s[i].isupper() & ('~' not in FIRST[s[i]])): emptyflag = 0 break if emptyflag == 1: FOLLOW[s[index]].extend(FOLLOW[k]) # A→αBβ是一个产生式而(即ε属于FIRST(β))，则把FOLLOW(A)加至FOLLOW(B)中 FOLLOW[s[index]] = list(filter(condition, FOLLOW[s[index]])) # 去除空串 for k in FOLLOW: # 去重 FOLLOW[k] = list(set(FOLLOW[k])) print('FOLLOW集为：%s' % FOLLOW) def get_VT(): VT.add('#') for l in Grammar.values(): for s in l: for c in s: if not (c.isupper()) and (c != '~'): VT.add(c) print('终结符为：%s' % VT) def generate_table(): get_VT() for k in Grammar: # 初始化分析表 LL1Table[k] = dict() for e in VT: LL1Table[k][e] = None for k in Grammar: l = Grammar[k] for s in l: if s[0].isupper(): for e in VT: if e in FIRST[s[0]]: LL1Table[k][e] = s if s[0] in VT: LL1Table[k][s[0]] = s if (s[0].isupper() and ('~' in FIRST[s[0]])) or (s == '~'): for c in FOLLOW[k]: LL1Table[k][c] = s print('分析表为：%s' % LL1Table) class GridFrame(wx.Frame): def __init__(self, parent): global LR0TABLE wx.Frame.__init__(self, parent) # Create a wxGrid object grid = wx.grid.Grid(self, -1) # Then we call CreateGrid to set the dimensions of the grid # (100 rows and 10 columns in this example) grid.CreateGrid(len(list(LL1Table)) + 1, len(VT) + 1) # We can set the sizes of individual rows and columns # in pixels grid.SetCellValue(1, 0, 'E') grid.SetCellValue(2, 0, 'M') grid.SetCellValue(3, 0, 'T') grid.SetCellValue(4, 0, 'N') grid.SetCellValue(5, 0, 'F') VTList = list(VT) VTList.sort(reverse=True) for i in range(len(list(VT))): grid.SetCellValue(0, i+1, list(VTList)[i]) for i in range(len(list(LL1Table))): for j in range(len(list(VT))): if str(LL1Table[grid.GetCellValue(i + 1, 0)][grid.GetCellValue(0, j + 1)]) != 'None': grid.SetCellValue(i + 1, j + 1, '->' + str(LL1Table[grid.GetCellValue(i + 1, 0)][grid.GetCellValue(0, j + 1)])) print(LL1Table[grid.GetCellValue(1, 0)][grid.GetCellValue(0, 1)]) self.Show() ##############句子的分析############### def analyze(): temp = input('输入句子') global a inputstr = '#'+temp+'#' inputstr = inputstr[1:] inputstr = list(inputstr[::-1]) print(inputstr) process = list() process.append('#') # "#"入栈 process.append(list(Grammar.keys())[0]) # 开始符入栈 errorflag = 0 # 出错标识 count = 0 # 插入列表时的索引 ProcessList.clear() ProcessList[count] = (''.join(process), ''.join(inputstr), ' ', 'init') while True: count += 1 current = process.pop() if current == inputstr[-1] == '#': # 分析成功结束 ProcessList[count] = ('句子', '接受', '', '') break if current in VT and (current == inputstr[-1]): # 遇到终结符 inputstr.pop() ProcessList[count] = (''.join(process), ''.join(inputstr), ' ', '读取下一个') continue if inputstr[-1] in VT: # 判断是不是终结符 new = LL1Table[current][inputstr[-1]] else: errorflag = 1 ProcessList[count] = (''.join(process), ''.join(inputstr), ' ', 'Error:输入不合法！') break if new == None: # 没有找到对应产生式 errorflag = 1 ProcessList[count] = (''.join(process), ''.join(inputstr), ' ', 'Error:没有找到对应产生式!') break if new == '~': # 产生式为空串 ProcessList[count] = (''.join(process), ''.join(inputstr), current + '->~', '出栈') continue for c in reversed(new): # 将产生式入栈 process.append(c) ProcessList[count] = (''.join(process), ''.join(inputstr), current + '->' + ''.join(new), '出栈、入栈') if errorflag == 0: print("分析成功！") else: print("分析失败！") items = list(ProcessList.items()) for i in range(len(items)): print(items[i][0],end=' ') for j in range(len(items[i][1])): print(items[i][1][j], end=' ') print(' ') # print(items) def analyze2(): temp = '(i+i)*i+i*i+i*(i+i)*i*i' global a inputstr = '#'+temp+'#' inputstr = inputstr[1:] inputstr = list(inputstr[::-1]) process = list() process.append('#') # "#"入栈 process.append(list(Grammar.keys())[0]) # 开始符入栈 count = 0 # 插入列表时的索引 while True: count += 1 current = process.pop() if current == inputstr[-1] == '#': # 分析成功结束 break if (current in VT) and (current == inputstr[-1]): # 遇到终结符 inputstr.pop() continue if inputstr[-1] in VT: # 判断是不是终结符 new = LL1Table[current][inputstr[-1]] else: break if new == None: # 没有找到对应产生式 break if new == '~': # 产生式为空串 continue for c in reversed(new): # 将产生式入栈 process.append(c) get_lan() # 得到文法 get_first() # 得到FIRST集 get_follow() # 得到FOLLOW集s generate_table() # 得到分析表 # GUI app = wx.App(0) frame = GridFrame(None) app.MainLoop() x = 100000 a = time.clock() print('start') while x: analyze2() # 对输入字符串进行分析 x -= 1 b = time.clock() print(b-a) ''' E->TM M->+TM|~ T->FN N->*FN|~ F->i|(E) ''' ''' (i+i)*i+i*i+i*(i+i)*i*i+i+i*i+(i*i)+(i+i)*i+i*i+i*(i+i)*i*i+i+i*i+(i*i)*(i+i)*i+i*i+i*(i+i)*i*i+i+i*i+(i*i) ''' |

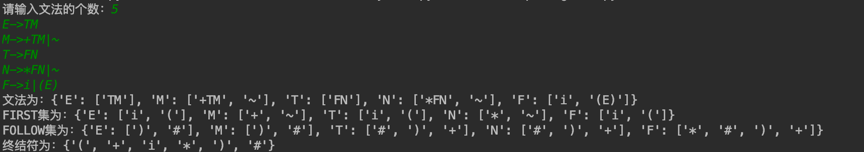

测试数据
- E->TM
- M->+TM|~
- T->FN
- N->*FN|~
- F->i|(E)

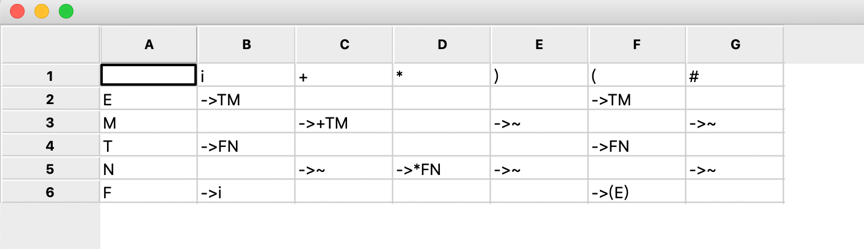

生成的表

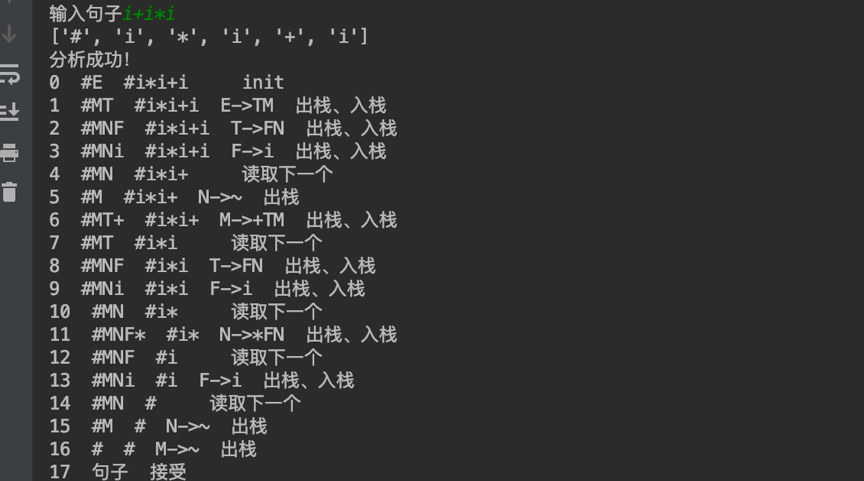

句子分析 i+i*i
