DE 算法主要用于求解连续变量的全局优化问题，其主要工作步骤与其他进化算法基本一致，主要包括变异(Mutation)、交叉(Crossover)、选择(Selection)三种操作。算法的基本思想是从某一随机产生的初始群体开始，利用从种群中随机选取的两个个体的差向量作为第三个个体的随机变化源，将差向量加权后按照一定的规则与第三个个体求和而产生变异个体，该操作称为变异。然后，变异个体与某个预先决定的目标个体进行参数混合，生成试验个体，这一过程称之为交叉。如果试验个体的适应度值优于目标个体的适应度值，则在下一代中试验个体取代目标个体，否则目标个体仍保存下来，该操作称为选择。在每一代的进化过程中，每一个体矢量作为目标个体一次，算法通过不断地迭代计算，保留优良个体，淘汰劣质个体，引导搜索过程向全局最优解逼近。

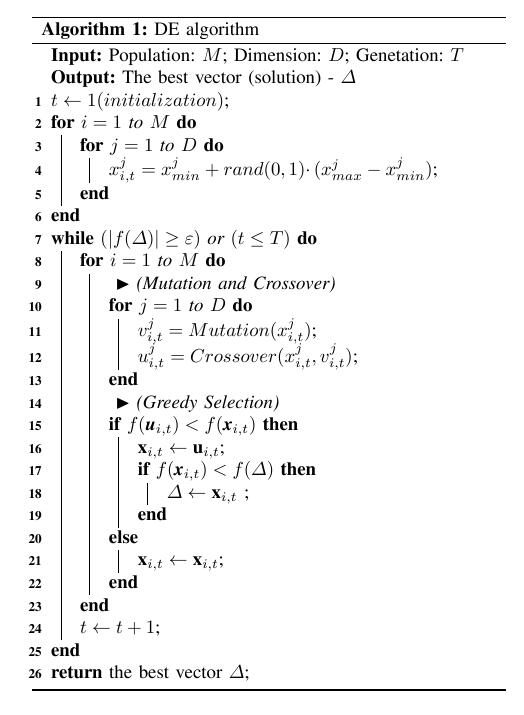

DE算法伪代码：
DE算法Python实现
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 |
from scitbx.array_family import flex from stdlib import random class differential_evolution_optimizer(object): def __init__(self, evaluator, population_size=50, f=None, cr=0.9, eps=1e-2, n_cross=1, max_iter=10000, monitor_cycle=200, out=None, show_progress=False, show_progress_nth_cycle=1, insert_solution_vector=None, dither_constant=0.4): self.dither=dither_constant self.show_progress=show_progress self.show_progress_nth_cycle=show_progress_nth_cycle self.evaluator = evaluator self.population_size = population_size self.f = f self.cr = cr self.n_cross = n_cross self.max_iter = max_iter self.monitor_cycle = monitor_cycle self.vector_length = evaluator.n self.eps = eps self.population = [] self.seeded = False if insert_solution_vector is not None: assert len( insert_solution_vector )==self.vector_length self.seeded = insert_solution_vector for ii in xrange(self.population_size): self.population.append( flex.double(self.vector_length,0) ) self.scores = flex.double(self.population_size,1000) self.optimize() self.best_score = flex.min( self.scores ) self.best_vector = self.population[ flex.min_index( self.scores ) ] self.evaluator.x = self.best_vector if self.show_progress: self.evaluator.print_status( flex.min(self.scores), flex.mean(self.scores), self.population[ flex.min_index( self.scores ) ], 'Final') def optimize(self): # initialise the population please self.make_random_population() # score the population please self.score_population() converged = False monitor_score = flex.min( self.scores ) self.count = 0 while not converged: self.evolve() location = flex.min_index( self.scores ) if self.show_progress: if self.count%self.show_progress_nth_cycle==0: # make here a call to a custom print_status function in the evaluator function # the function signature should be (min_target, mean_target, best vector) self.evaluator.print_status( flex.min(self.scores), flex.mean(self.scores), self.population[ flex.min_index( self.scores ) ], self.count) self.count += 1 if self.count%self.monitor_cycle==0: if (monitor_score-flex.min(self.scores) ) < self.eps: converged = True else: monitor_score = flex.min(self.scores) rd = (flex.mean(self.scores) - flex.min(self.scores) ) rd = rd*rd/(flex.min(self.scores)*flex.min(self.scores) + self.eps ) if ( rd < self.eps ): converged = True if self.count>=self.max_iter: converged =True def make_random_population(self): for ii in xrange(self.vector_length): delta = self.evaluator.domain[ii][1]-self.evaluator.domain[ii][0] offset = self.evaluator.domain[ii][0] random_values = flex.random_double(self.population_size) random_values = random_values*delta+offset # now please place these values ni the proper places in the # vectors of the population we generated for vector, item in zip(self.population,random_values): vector[ii] = item if self.seeded is not False: self.population[0] = self.seeded def score_population(self): for vector,ii in zip(self.population,xrange(self.population_size)): tmp_score = self.evaluator.target(vector) self.scores[ii]=tmp_score def evolve(self): for ii in xrange(self.population_size): rnd = flex.random_double(self.population_size-1) permut = flex.sort_permutation(rnd) # make parent indices i1=permut[0] if (i1>=ii): i1+=1 i2=permut[1] if (i2>=ii): i2+=1 i3=permut[2] if (i3>=ii): i3+=1 # x1 = self.population[ i1 ] x2 = self.population[ i2 ] x3 = self.population[ i3 ] if self.f is None: use_f = random.random()/2.0 + 0.5 else: use_f = self.f vi = x1 + use_f*(x2-x3) # prepare the offspring vector please rnd = flex.random_double(self.vector_length) permut = flex.sort_permutation(rnd) test_vector = self.population[ii].deep_copy() # first the parameters that sure cross over for jj in xrange( self.vector_length ): if (jj<self.n_cross): test_vector[ permut[jj] ] = vi[ permut[jj] ] else: if (rnd[jj]>self.cr): test_vector[ permut[jj] ] = vi[ permut[jj] ] # get the score please test_score = self.evaluator.target( test_vector ) # check if the score if lower if test_score < self.scores[ii] : self.scores[ii] = test_score self.population[ii] = test_vector def show_population(self): print "+++++++++++++++++++++++++++++++++++++++++++++++++++++++++" for vec in self.population: print list(vec) print "+++++++++++++++++++++++++++++++++++++++++++++++++++++++++" class test_function(object): def __init__(self): self.x = None self.n = 9 self.domain = [ (-100,100) ]*self.n self.optimizer = differential_evolution_optimizer(self,population_size=100,n_cross=5) assert flex.sum(self.x*self.x)<1e-5 def target(self, vector): tmp = vector.deep_copy() result = (flex.sum(flex.cos(tmp*10))+self.n+1)*flex.sum( (tmp)*(tmp) ) return result class test_rosenbrock_function(object): def __init__(self, dim=5): self.x = None self.n = 2*dim self.dim = dim self.domain = [ (1,3) ]*self.n self.optimizer = differential_evolution_optimizer(self,population_size=min(self.n*10,40),n_cross=self.n,cr=0.9, eps=1e-8, show_progress=True) print list(self.x) for x in self.x: assert abs(x-1.0)<1e-2 def target(self, vector): tmp = vector.deep_copy() x_vec = vector[0:self.dim] y_vec = vector[self.dim:] result=0 for x,y in zip(x_vec,y_vec): result+=100.0*((y-x*x)**2.0) + (1-x)**2.0 #print list(x_vec), list(y_vec), result return result def print_status(self, mins,means,vector,txt): print txt,mins, means, list(vector) def run(): random.seed(0) flex.set_random_seed(0) test_rosenbrock_function(1) print("OK") if __name__ == "__main__": run() |
这里基本上涵盖了主流的几种Python实现的高性能DE算法：https://github.com/geatpy-dev/geatpy/tree/master/geatpy/templates/soeas/DE
好，谢谢
scitbx在windows下怎么安装？
